Meistergram information

The following are notes we have made about Meistergram machines.

The hoops on this page will fit some models of machines, but not all. The first thing you will need to do is to figure out which sewing field widths your model uses. Please look at these pictures and take similar measurements of the existing hoops you use with your machine. Once you know your sewing field size, select the hoop that you are interested in and then select the sewing field option that is the same as your current hoop.

Other Models have different bracket styles and widths. It would be recommended that you email a picture of the following items.

  • A picture of a left chest embroidery with a tape measure from end of left bracket to end of right bracket.
  • Do the same on the Jacket back size for your machine.
  • We will need the Model #.


  • Mighty Hoop
    • Single Head Machines
      • Older Machines could move their arms from 390 to 541 or 543
        • MS390
          • 4.25, 4.375R, 4.25×13, 5.5, 6.5, 6.25×8.25, 7.25, 8×9,9×5, and 10×10
        • CH541
          • 12×15 or 13×16

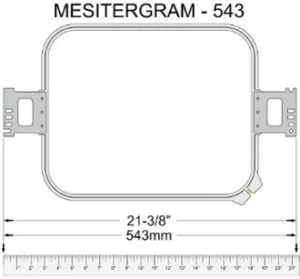

        • CH543
          • 4.25×13-Horizonatal, 8×13, and 11×13
      • GEM XL1500
        • Sewing Field has a 360 and 600 spacing with TJ brackets. (Confirmed on 6-12-19)
      • GEM PR 1500
        • Like a Brother PR machine but uses CH10 brackets
          • Comes with 60×40 (Hoop A), 100×100 (B), 180×130 (C), 300×200 (D), and 360×200 (F)
        • Uses CH10 brackets for Mighty Hoop
          • Confirmed by customer 3-9-2021
        • PINS are used to lock brackets in place. The arm clip from the tubular arms will not go into the square notch. So customers may think they are wrong because the clip is not in the square. This is incorrect. The brackets lock into the pins on both sides.
    • Multi-Head Machines
      • GEM 1502 – Bridge Machine
        • MS390 for standard hoops
