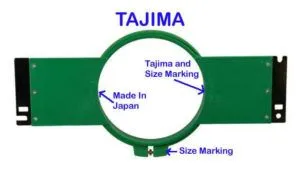

Hoop Identifier

Tajima Tubular Sizes Available

9cm, 12cm, 15cm, 18cm, and 21cm
12cmx15cm square hoop

Jacket Backs

Wood or Plastic 30X30cm Jacket Back
24×24, 24×30, 38×31, 34×31
335×329, 335×453, 260×335
413×467, 413×342, 432Hx300V (also called 320Vx450H)
450Dx395W, 475×310, 475×410
475×450 also called 480×451, 575×410
510×450 and Special 610×625

Happy Tubular Sizes Available

12cm, 15cm, 18cm, and 21cm

Jacket Backs

300×240 and 320×320

Rainbow Tubular Sizes Available

12cm, 15cm, 18cm

We believe that Aemco, Feiya, Prodigy, Generations, Phoenix, and Consew are all using these hoops.

Look at the pictures and make sure your hoops are identical to these before ordering.

We refer to these hoops as Aemco for ordering purposes.

If your hoops do not look like the ones here, then you may have another hoop like Durkee, Allied or Hooptech.

Aemco Sizes Available

12cm, 15cm, 19cm and 30×30
We only have the pocket guide for the 15cm size at this time.

Meistergram Old Style sold before December 2009

Notice that the metal parts of the hoops are held on by 2 screws, new style are held on by 3 screws.

New Style sizes available, 12cm, 15cm, 18cm, 30x30cm

Meistergram New Style sold after December 2009

Notice that the metal parts of the hoops are held on by 3 screws, old style are held on by 2 screws.

New Style sizes available, 12cm, 15cm, 18cm, (all 3 use Tajima style fixtures)

HoopMaster fixtures are currently available for the following Allied Grid-Lock Hoops.

Allied Sizes Available

9cm, 12cm, 15cm, 18cm, and 21cm

Jacket Backs

Plastic 30X30cm, 24×24, and 24×30

We are working on a fixture for the new 19×20 Premium Hoop

Notice that the new Premium Allied round hoops have a different adjuster and at the top of the outer ring there is a little triangular bump. The old style Allied hoops will fit all Tajima or SWF HoopMaster fixtures, new or old. The new style Allied hoops will only fit fixtures made after November 2010 or fixtures that have been modified for this new premium style.

Brother Tubular Sizes Available

The HoopMaster system will work for Brother if you use Tajima green tubular Hoops Or Brother grey hoops

Brother Sizes

7cm, 10cm, 13cm, 16cm and 19cm

Jacket Backs

300X280 , 23×24, 300×480, and 300×430 Horizontal or Vertical
NEW 30×30 and 260×430

Brother sizes for the new PR-600 Machine
100×100, 300×200, 180×130, 60×40

We have a special kit for all of these sizes, click here for the kit

Tajima Sizes

9cm, 12cm, 15cm, 18cm ,21cm

Jacket Backs

Wood or Plastic 30X30cm,24×30, 335×329, 24×24

If you have the Tajima Green Hoops Make sure you order the HoopMaster for the Tajima and not the Brother Hoops

Barudan Tubular Sizes Available

9cm, 12cm, 15cm, 18cm for Blue Hoops

Jacket Backs

300X290, 300×430, 330×438, 460×434, NEW 460×354
240×240 for Elite JR,NEW 330×338, NEW 460×304

White Tubular Hoops 12cm and 15cm 380 needle spacing only

Fixtures for the white hoops are a special order and are not normally in stock

Hoop Tech Tubular Sizes Available

12cm, 15cm 18cm round also know as 4.25, 5.25 and 6.5 Round

3.5, 4.5, 5.5, 6.5 and 7.5 Square Hoops

11.5″ square Jacket Back
12×14 Jacket Back
30×15 Jacket Back

Melco Tubular Sizes Available

12cm, 15cm, and 18cm and 22cm old and new style Tubular Hoops
Also called sizes 4.7 , 5.9, 7.1, and 8.3 inch
11×13″ Jacket Back
NEW 11″x17″ also called 44×30 Jacket Back (for plastic or wood hoop. This fixture must be ordered for the correct one, it is a different fixture for the plastic and wood)
43×43 wood hoop

When ordering for Melco, we also need to know how many hoops of each size you have. For example if you are ordering the HoopMaster for two sizes we would need to know how many hoops of those two sizes you have. The reason for this is so that we can send you springs for each of your hoops. The Springs are put in between the two halves of the outer ring to help spread the ring open when loosened. This makes hooping much easier. Below is a picture of were the spring will go.

IMPORTANT INFO FOR MELCO CUSTOMERS

Melco changed their hoops around 1999. The change only looks minor, but it does effect the way the HoopMaster works. The main change is the addition of the little tab at the top of the outer ring. Also the entire diameter of the inner and outer ring is a little larger on the newer hoops. This change makes it not possible for the HoopMaster to work properly on both styles at the same time. When ordering fixtures for the HoopMaster you will need to know which style you have. You might also want to consider replacing your hoops if you have the older style. There are a few reasons for this. First, If you ever need to replace your hoops or want extra hoops, you will not be able to get the old style anymore. You want to make sure you do not mix styles because you will have to purchase additional HoopMaster fixtures. Second, if you ever need to replace just your outer rings, you will not be able to get the old style rings, and the new style rings do not work on your old style hoops. If you would decide to replace your old style hoops you have a few options. You could, buy new hoops from Melco, or buy after market hoops. Durkee, Hooptech, and Allied, all make hoops that will fit on Melco machines. The other advantage to after market hoops is that you can just change the metal brackets on the hoops if you ever get another brand of machine. This is much cheaper than replacing the entire hoop.

Durkee Tubular Sizes Available

9cm, 12cm, 15cm, 18cm
NEW 6×6 Square hoop
335×329, 30×15 horizontal or vertical
300×410

SWF Tubular Sizes Available

9cm, 12cm, 15cm, and 18cm

Jacket Backs

12×12″ also called 300x300mm
16×14″ also called 357x412mm
16×17″ also called 419x439mm
470x300mm used on 6 and 12 needle compact machine
412x270mm Standard hoop for 12 needle compact machine
350×439 also called 12×17 Tall hoop only for 6 head compact
12×17 Tall hoop for 1506 Compact, 1508 Compact and sometimes 1506
420×300 wood hoop made by allied
24×24 NEW
39×30 NEW

SWF jacket back hoops are not marked with a size so you have to measure them, use the following pictures to help determine the size of your hoop.

This page is designed to help you determine which HoopMaster fixture to order.

HOOPMASTER DOES NOT SELL HOOPS. IF YOU NEED HOOPS YOU SHOULD CONTACT YOUR MACHINE DEALER

Always measure the inside size of the top hoop (the hoop with the metal brackets)

If You Use These Types of Hoops Then Make sure you order the HoopMaster for Tajima.

Toyota Tubular Sizes Available

The HoopMaster System Will Work for Toyota If You Use Tajima Green Tubular Hoops

Tajima Sizes Available

9cm, 12cm, 15cm, 18cm,and 21cm

Jacket Backs

Wood or Plastic 30X30cm Jacket Back
24×24, 24×30, 38×31
335×329, 335×453
413×467, 413×342, 432Hx300V
450×395, 475×310, 475×410, 475×450

Inbro Sizes Available

12cm, 15cm, 18cm

Axiom Sizes Available

12cm, 15cm, 18cm

When ordering for Axiom, we also need to know how many hoops of each size you have. For example if you are ordering the HoopMaster for two sizes we would need to know how many hoops of those two sizes you have. The reason for this is so that we can send you springs for each of your hoops. The Springs are put in between the two halves of the outer ring to help spread the ring open when loosened. This makes hooping much easier. Below is a picture of were the spring will go.

ZSK Tubular Sizes Available

12cm, 15cm, 18cm and 30x30cm
Also called sizes 4.7 , 5.9, 7.1

Some ZSK machines are being sold with Allied Hoops.
If you have allied hoops, Please click on the picture to see the sizes we have for this hoop when ordering please specify if you have allied or rhino hoops with your machine.

IMPORTANT INFO FOR ZSK CUSTOMERS
with Rhino hoops

When ordering for ZSK-Rhino Hoops, we also need to know how many hoops of each size you have. For example if you are ordering the HoopMaster for two sizes we would need to know how many hoops of those two sizes you have. The reason for this is so that we can send you springs for each of your hoops. The Springs are put in between the two halves of the outer ring to help spread the ring open when loosened. This makes hooping much easier. Below is a picture of were the spring will go.
