Tajima information

HoopMaster by Midwest Products, Inc. > Tajima information

The following are notes we have made about Tajima machines.

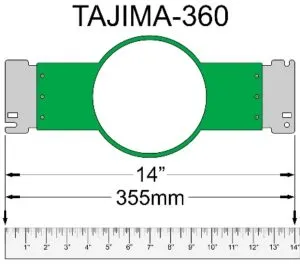

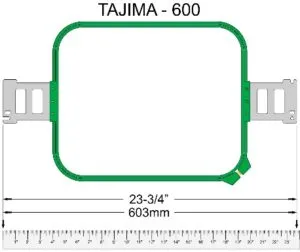

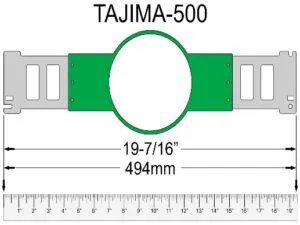

The hoops on this page will fit some models of machines, but not all. The first thing you will need to do is to figure out which sewing field widths your model uses. Please look at these pictures and take similar measurements of the existing hoops you use with your machine. Once you know your sewing field size, select the hoop that you are interested in and then select the sewing field option that is the same as your current hoop.

You don’t need a measurement for the Tajima SAI machine.  Just choose TJSAI when ordering.

Mighty Hoop

  • 12×15 or 13×16 will work on most single head machines at the 600mm spacing
  • 10×19 will work on all 600mm spacing
  • 17×16 will only work on your machine if you have 475×450 or bigger hoop that came with your Tajima Single Head Machine
  • Single Head Embroidery Machines Model # Info
    • Tubular Arm Positions
      • 360mm, 500mm, 600mm
    • TMEX 1501C
      • Max Hoop – TJ500 – 12×15
    • THEX 1501C
      • Max Hoop – TJ500 – 12×15
    • TMEX 901C
      • Max Hoop – TJ500 – 12×15
    • TUMX 1501C
      • Max Depth Hoop – 13×16
      • Max Width Hoop – 10×19
    • TEMX 1501
      • Max Depth Hoop – 13×16
      • Max Width Hoop – 10×19
    • TEJT 1501C
      • Max Depth Hoop – 13×16
      • Max Width Hoop – 10×19
    • TMBP-SC1501
      • Max Depth Hoop – 13×16
      • Max Width Hoop – 10×19
    • TMBR-SC1501
      • Max Depth Hoop – 13×16
      • Max Width Hoop – 10×19
    • TMBU-SC1501
      • Max Depth Hoop – 13×16
      • Max Width Hoop – 10×19
    • TWMX-C1501 (SUMO)
      • Max Depth Hoop – 17×16
      • Max Width Hoop – 10×19
    • TFMX-C1501
      • Max Depth Hoop – 13×16
      • Max Width Hoop – 10×19
    • TMEZ-SC1501
      • Max Depth Hoop – 11×13
    • TMARK-K 1501
      • Max Depth Hoop – 14×16
      • Max Width Hoop – 10×19
    • TFMX-II-SC1501
      • Max Depth Hoop – 14×16
      • Max Width Hoop – 10×19
  • Multi-Head Embroidery Machines
    • Standard Spacing (360mm or 14”)
      • Can only go up to a 10×10 Mighty Hoop
    • Stretch Spacing (500mm or 19.5”)
      • Can go up to 11×13
      • May go bigger based on Model # below
    • 2-Head
      • TFHX-II-C1502 – 12×15 with 1” offset
      • TMFX-II-C1202 – 12×15 with 1” Offset TJ500
      • TMAR-K1502C – 13×16” w/ TJ500
      • TFMX-C902 – 13×16 w/ TJ500
    • 4-Head
      • TFHX-II-C1504 – 12×15 w/ TJ500 1” offset
      • TMFX-II-C1504 – 12X15 w/ TJ500 1” offset
      • TMFX-C904-S – 12×15 w/ 1” offset
      • TFMX-II-C1504 – 13×16” w/ TJ500
      • TMAR-K1504C – 13×16” w/ TJ500
    • 6-Head
      • TFHX-II-C1506 – 12×15 w/1” offsest
      • TMAR-K-C1506-W – 12×15
      • TFMX-ll-SC 1506- 10×10 largest
        • 10×18 if they can use a 310×510
      • TFMX–II-C1506 – 12×15” w/TJ500 needed offset
    • 8-Head
    • 12-Head
      • TFGN-C1212 – 460mm Width
        • No 11×13 – Max 10×10
  • 18×10 Mighty Hoop
    • This hoop will be the maximum width we can make for a Tajima 360mm wide machine and will fit any machine that can use the TFA2-510×310 hoop
    • Hoop was made 3-12-20
